Agilent Venting for Turbo Pumps

AllVacuum ProductsTurbo PumpsAgilent / Varian

Previous 36 / 39 Next



  • Turbo Pump & Controller Accessories

Agilent - Venting for Turbo Pumps

The turbo pump vent valve ensures the correct and approved venting and slowing-down procedure is applied to your turbomolecular pump. In the event of the pump stopping or a power loss, the vent valve injects a defined gas flow into your turbo pump through a calibrated orifice managed by an electromagnetically operated valve.


Product List

X3514-68001

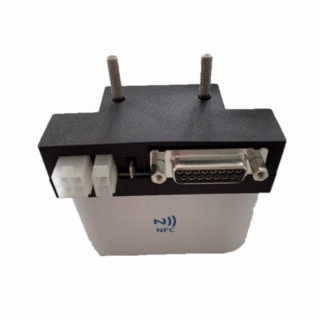

TwisTorr 305-IC Fan/Vent Adapter kit

1 Kit
NoImagewisTorr 305-IC Fan/Vent Adapter kit
9699834

Vent Valve Kit for Onboard/Navigator Controller, Normally Open, M8 Threads. For use with 301, 304 FS, 305 FS, 551, 404 FS, 701, 704 FS, 804 FS, 1001, V1-KG Turbo Pumps

1 Kit
NoImage
9699843

Vent Valve Kit for Rack Controller, Normally Open, Adapter for M5 or M8 Threads, For use with obsolete V551 or V1000HT controllers, 9699444, 9699454, 9699544, or 9699554


9699834M011

Vent valve, normally closed, 0.5 mm orifice, for all 305 onboard controllers. Valve can be used with 305-IC controllers (adapter PN X3514-68001 required)

1 Each


NoImage
9699834M010

Vent valve, normally closed, 1.2 mm orifice, for all 305 and 704 onboard controllers. Valve can be used with 305-IC controllers (adapter PN X3514-68001 required)

1 Each
NoImage
-
Features
  • Optimized and safe venting time
  • Smart and automatic operation fully coordinated with turbo pump operative phases
  • Power loss or manual stop automatically triggers vent valve to decelerate the turbo pump and vent the system
  • Full compatibility with Agilent turbo pumps and turbo pump controllers
Literature
Technical Overviews

How to Select Vent Valves for Agilent Turbo Pumps

This technical overview is a guide to help users when selecting the proper Agilent vent valve according to the controller in use. It also provides useful information about the compatibility between existing vent valve models and controller types.

-
Support
User Manuals

Turbo-V Vent Valve user manual

Instructions for use and technical specifications for Turbo-V Vent Valv

Vent accessory installation instructions

Instructions for use for the Vent accessory installatio

Turbo-V Vent Device user manual

Instructions for use and technical specifications for Turbo-V Vent Device (model 9699831 and 9699731

Delayed Vent Device User Manual

Instructions for use and technical specifications for the Delayed Vent Devic

TV 141 Navigator Vent Valve user manual

Instructions for use and technical specifications for Turbo-V 141 Navigator Vent Valv


-


-
