Features

■ Fresh and simple system settings with Chinese and English operation interfaces

■ High resolution: 24-bit color 4.3-inch TFTLCD, resolution: 480 x 272

■ Linear design and triple channel output

■ High precision and high stability, low ripple and low noise

■ 1/2 2U super mini size and output and sampling terminal on the front and rear panel

■ Programmable output of voltage and current

■ Timing output: time (0.1-99999.9s)

■ Three-channel independent adjustment

■ Simultaneously display of voltage, current, power and timing output time for three-channel

■ Support series, parallel or synchronous output between channels

■ Use rotary knob and numeric keyboard to set the voltage,current and output time

■ Remote measurement function, compensation for line voltage drop

■ Output control switch

■ Fully isolated circuit and support positive and negative reverse connection

■ Copy screen function

■ Over voltage protection

■ Intelligent temperature control fan

■ Support standard SCPI communication protocol

■ Upgrade instrument firmware via USB flash

■ Software monitoring via computer

Application

■ R & D and design verification common test

■ Production line table routine testing and maintenance

■ Automated device integration testing

■ Solar photovoltaic simulation test

■ New power car simulation test

■ Teaching laboratory

Specifications

Model	CHs	Voltage	Current	Power
TH6402A	CH1	0-30V	0-3A	90W
	CH2	0-30V	0-3A	90W
	CH3	0-5V	0-3A	15W
TH6402B	CH1	0-30V	0-3A	90W
	CH2	0-30V	0-3A	90W
	CH3	0-10V	0-3A	30W
	CH4	0-5V	0-1A	5W
TH6402	CH1	0-30V	0-3A	90W
	CH2	0-30V	0-3A	90W
	CH3	0-6V	0-5A	30W
TH6412	CH1	0-30V	0-6A	180W
	CH2	0-30V	0-6A	180W
	CH3	0-6V	0-5A	30W
TH6413	CH1	0-60V	0-3A	180W
	CH2	0-60V	0-3A	180W
	CH3	0-6V	0-5A	30W



Accessary

Standard
Accessories name	Model

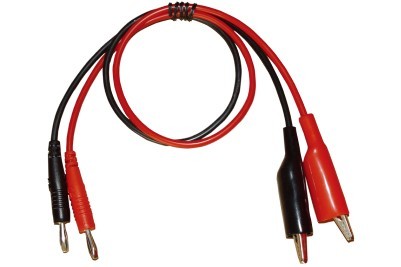

Test Cable with both ends	TH26004C



Optional
Accessories name	Model
High Current Test Cable	TH26035D
High Current Test Cable	TH26035E
